WAVESHARE TOF Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, Support UART Communication
1 / 7
WAVESHARE TOF Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, Support UART Communication

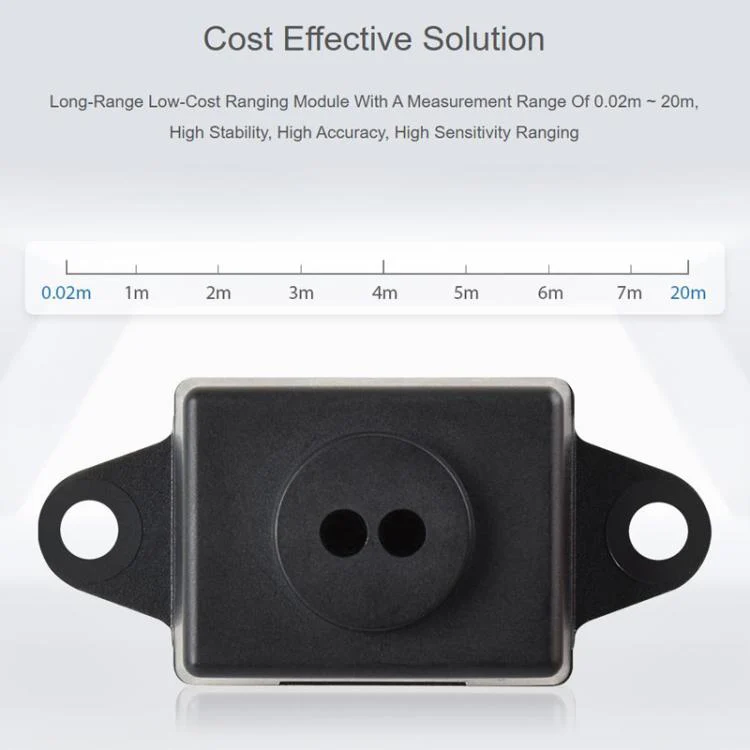

1. Typical measurement range: 0.02m-20m
2. Typical measurement accuracy: less than 1m +/-20mm, larger than 1 m +/-2%
3. Field of view (FOV): 3 degree +/-0.5 degree
4. Refresh rate: 30 Hz
5. Ambient light tolerance: 100,000 lux
6. Laser safety class: LASER CLASS 1
7. Wavelength: 940 nm
8. Communication interface: UART
9. Communication baud rate: 115.2 Kbps
10. Supply voltage: 4V-5.6V
11. Communication level: 3.3V
12. Power consumption: 170mW (UART active output, supply voltage 5.0V, current 34mA)
13. Housing material: PC
14. Operating temperature: -20 to 70 degrees Celsius
15. Operating humidity: 35%-80% RH
16. Storage temperature: -40 to 80 degrees Celsius
17. Weight: about 3.6g

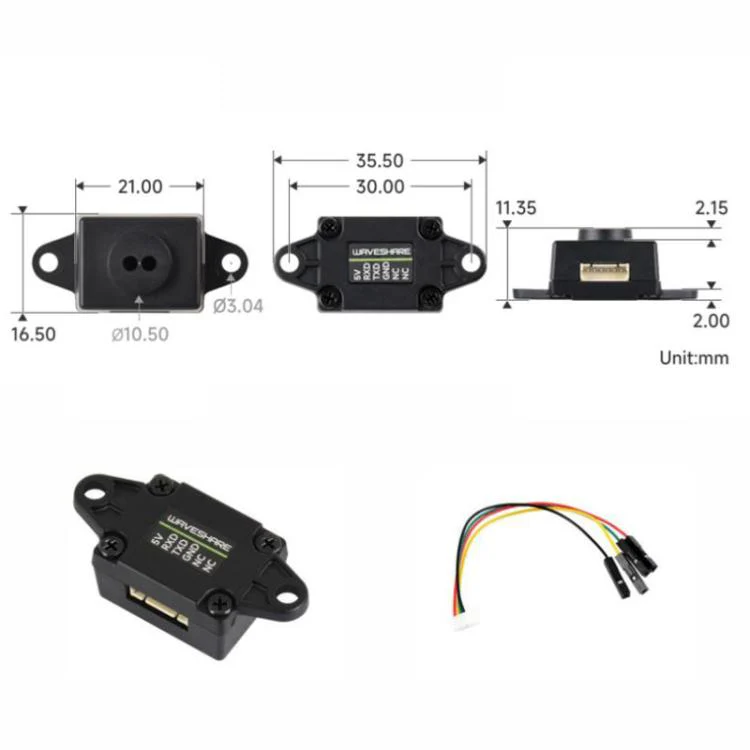

18. Size: about 35.5 x 16.5 x 11.35mm
Features:
1. Based on a D-TOF single-point laser sensor, with a built-in MCU and fully encapsulated housing. Features sunlight suppression and dirt compensation algorithms for fast and accurate measurement of target distances.
2. Utilizes high-precision optical collimation technology to ensure stable distance measurement of various targets even under strong light conditions of up to 100,000 lux.
3. Supports UART interface communication
2. Typical measurement accuracy: less than 1m +/-20mm, larger than 1 m +/-2%
3. Field of view (FOV): 3 degree +/-0.5 degree
4. Refresh rate: 30 Hz
5. Ambient light tolerance: 100,000 lux
6. Laser safety class: LASER CLASS 1
7. Wavelength: 940 nm
8. Communication interface: UART
9. Communication baud rate: 115.2 Kbps
10. Supply voltage: 4V-5.6V
11. Communication level: 3.3V
12. Power consumption: 170mW (UART active output, supply voltage 5.0V, current 34mA)
13. Housing material: PC
14. Operating temperature: -20 to 70 degrees Celsius
15. Operating humidity: 35%-80% RH
16. Storage temperature: -40 to 80 degrees Celsius
17. Weight: about 3.6g
18. Size: about 35.5 x 16.5 x 11.35mm
Features:
1. Based on a D-TOF single-point laser sensor, with a built-in MCU and fully encapsulated housing. Features sunlight suppression and dirt compensation algorithms for fast and accurate measurement of target distances.
2. Utilizes high-precision optical collimation technology to ensure stable distance measurement of various targets even under strong light conditions of up to 100,000 lux.
3. Supports UART interface communication
Specification:
