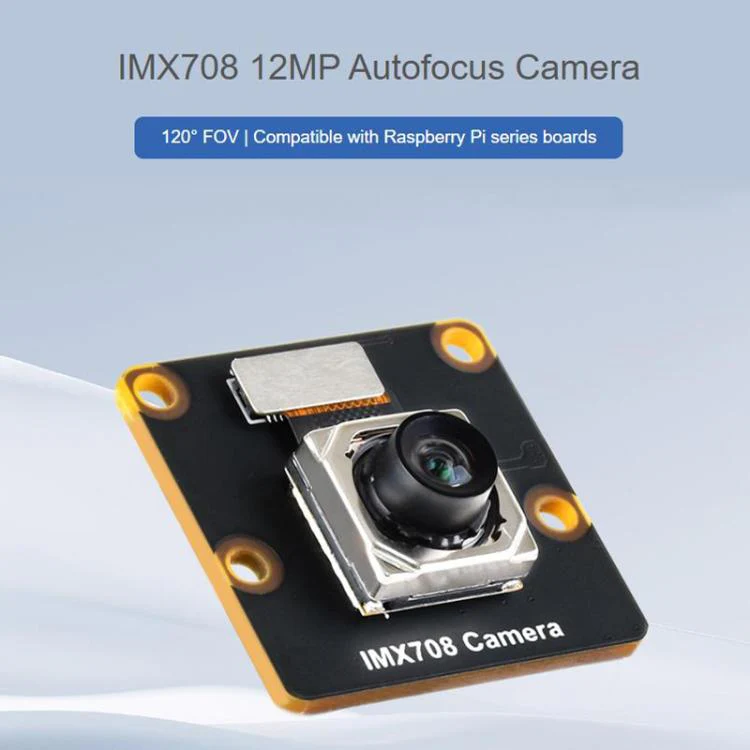

Waveshare 34276 IMX708 12MP High Resolution Autofocus Camera, Compatible With Raspberry Pi Series Boards

Product image 1
1 / 7

Waveshare 34276 IMX708 12MP High Resolution Autofocus Camera, Compatible With Raspberry Pi Series Boards


1. Sensor: IMX708
2. Pixel: 11.9MP (4608 x 2592)
3. Focusing method: I2C controller, supports auto focus
4. CMOS size: 7.4mm
5. Aperture: F2.2
6. Focal length: 3.08mm
7. Diagonal field of view (FOV): 120°

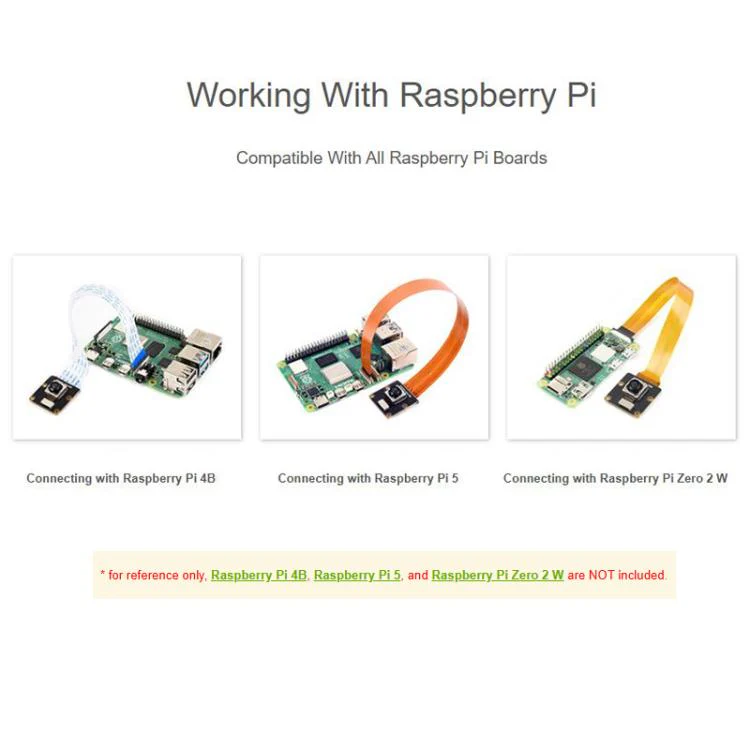

8. Supported devices: compatible with all Raspberry Pi motherboard models

Packaging list:
- IMX708-120 Camera (B) x 1
- 15PIN FFC 1.0 with 160mm (opposite direction) pitch x 1
- RPi Zero V1.3 Camera Cable 15cm x 1


Specification:
Package Weight
One Package Weight 0.01kgs / 0.03lb
One Package Size 6cm * 6cm * 4cm / 2.36inch * 2.36inch * 1.57inch
Qty per Carton 360
Carton Weight 5.00kgs / 11.02lb
Carton Size 50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
Loading Container 20GP: 438 cartons * 360 pcs = 157680 pcs
40HQ: 1018 cartons * 360 pcs = 366480 pcs

$13.73

Original: $39.22

-65%
Waveshare 34276 IMX708 12MP High Resolution Autofocus Camera, Compatible With Raspberry Pi Series Boards—

$39.22

$13.73

Product Information

Shipping & Returns

Description


1. Sensor: IMX708
2. Pixel: 11.9MP (4608 x 2592)
3. Focusing method: I2C controller, supports auto focus
4. CMOS size: 7.4mm
5. Aperture: F2.2
6. Focal length: 3.08mm
7. Diagonal field of view (FOV): 120°
8. Supported devices: compatible with all Raspberry Pi motherboard models

Packaging list:
- IMX708-120 Camera (B) x 1
- 15PIN FFC 1.0 with 160mm (opposite direction) pitch x 1
- RPi Zero V1.3 Camera Cable 15cm x 1


Specification:
Package Weight
One Package Weight 0.01kgs / 0.03lb
One Package Size 6cm * 6cm * 4cm / 2.36inch * 2.36inch * 1.57inch
Qty per Carton 360
Carton Weight 5.00kgs / 11.02lb
Carton Size 50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
Loading Container 20GP: 438 cartons * 360 pcs = 157680 pcs
40HQ: 1018 cartons * 360 pcs = 366480 pcs
