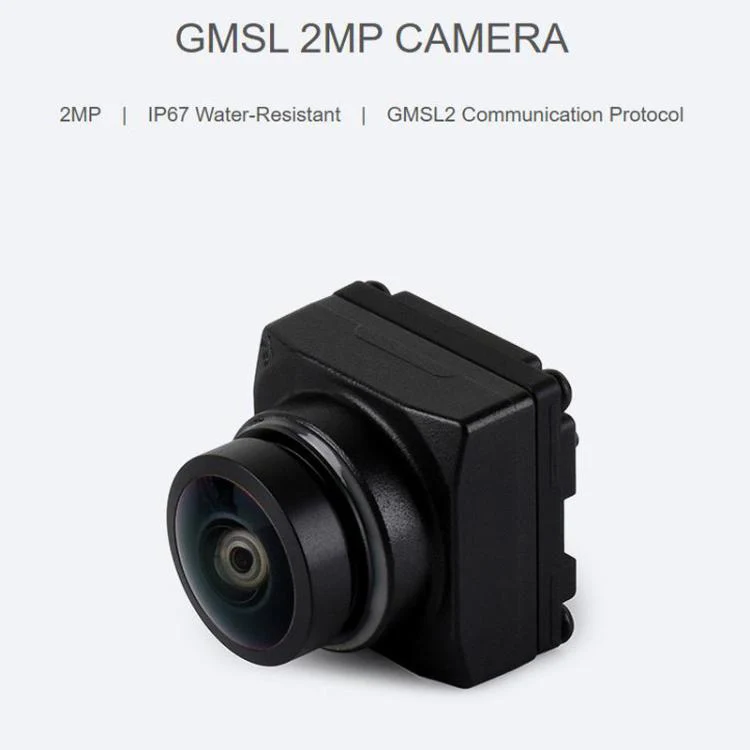

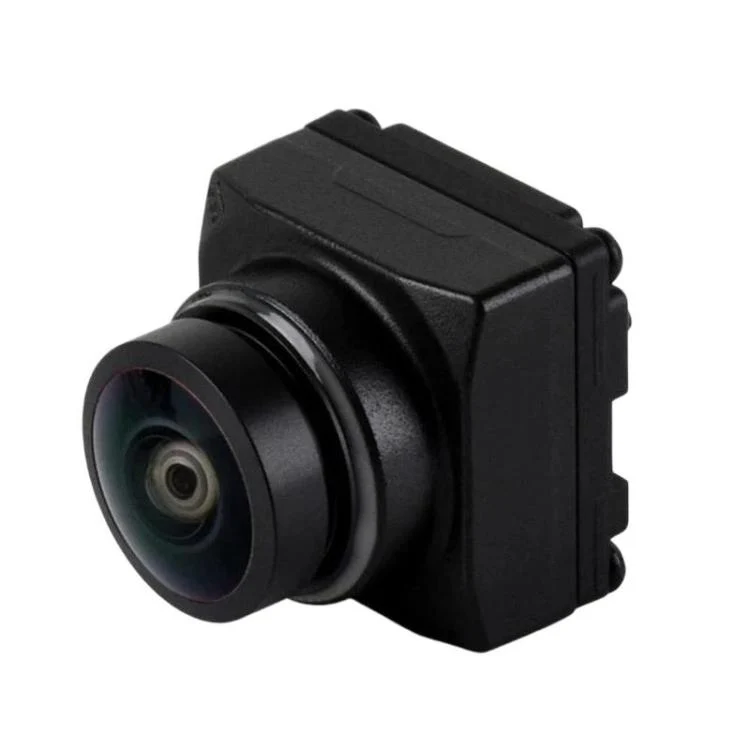

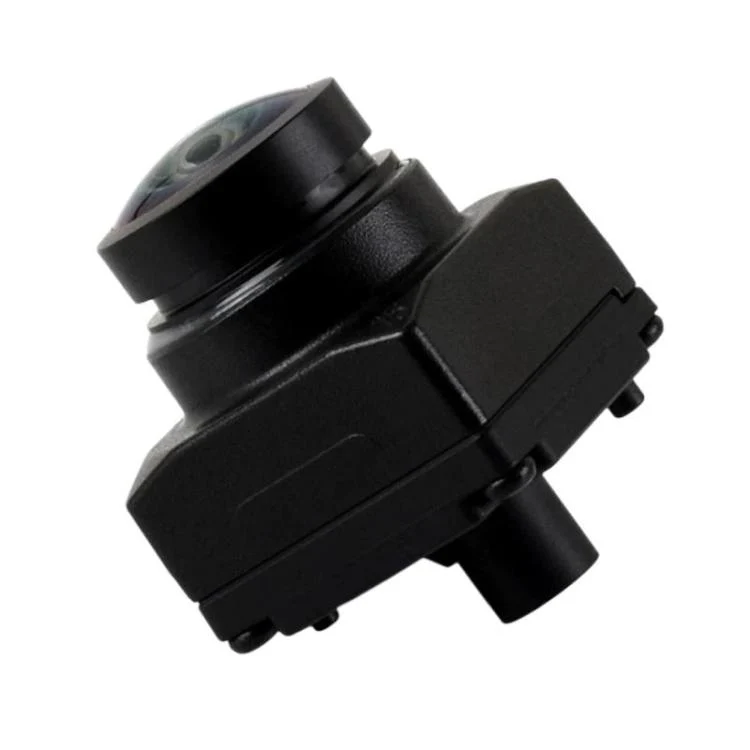

Waveshare 34019 2MP GMSL Camera Module, Automotive-Grade Image Sensor, Built-In ISP, AA Lens, IP67 Protection Degree
1 / 6
Waveshare 34019 2MP GMSL Camera Module, Automotive-Grade Image Sensor, Built-In ISP, AA Lens, IP67 Protection Degree
1. Sensor model: 2.51MP RGGB
2. Resolution: 1920 x 1080
3. CMOS size: 1/2.57inch
4. Pixel size: 3 x 3 um
5. Field of view (FOV): 195° (Horizontal) x 152° (Vertical)
6. Aperture (F.No): 2
7. Focal Length (EFL): 1.51mm
8. Depth of field: 0.083m - infinity (fixed at 0.4m)
9. Distortion: less than -155%
10. ISP: built-in
11. Frame rate: 1920 x 1080 30fps
12. HDR (High dynamic imaging): supported
13. LFM (LED flash suppression): supported
14. Output format: YUV422 8bit
15. Serializer model: MAXIM MAX96717F
16. I2C address: 0x80 (8-bit address)

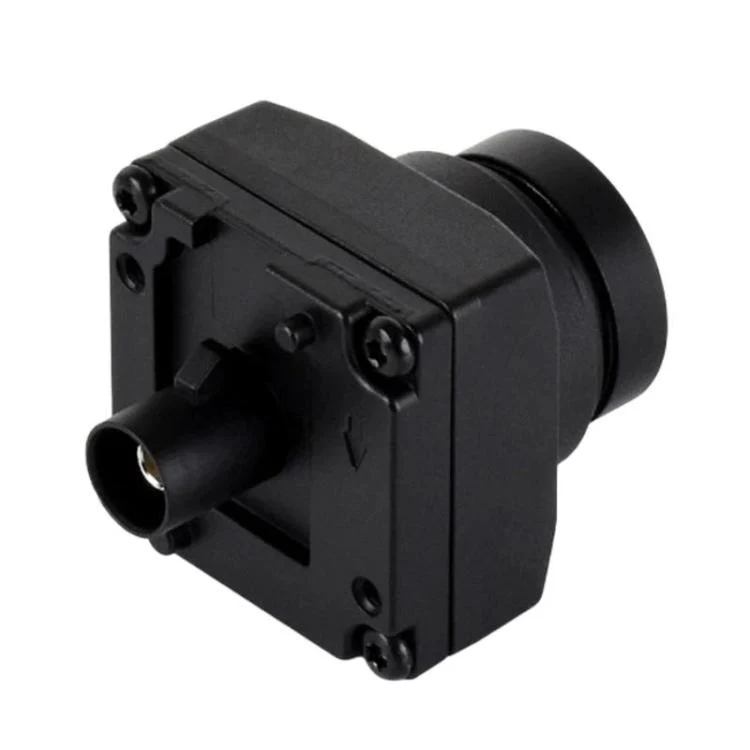

17. Camera interface: fakra Z type connector
18. Operating voltage: 9 - 12V PoC
19. Operating current: less than 200mA 12V
20. Operating temperature: -40°C - 85°C
21. Protection level: IP67
Packaging list:
- GMSL-2MP-Camera-A main unit x 1
- GMSL Camera wiring (2m double-jumper coaxial cable assembly) x 1
Specification:
| Package Weight |
|
$50.81
Original: $145.18
-65%Waveshare 34019 2MP GMSL Camera Module, Automotive-Grade Image Sensor, Built-In ISP, AA Lens, IP67 Protection Degree—
$145.18
$50.81Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
1. Sensor model: 2.51MP RGGB
2. Resolution: 1920 x 1080
3. CMOS size: 1/2.57inch
4. Pixel size: 3 x 3 um
5. Field of view (FOV): 195° (Horizontal) x 152° (Vertical)
6. Aperture (F.No): 2
7. Focal Length (EFL): 1.51mm
8. Depth of field: 0.083m - infinity (fixed at 0.4m)
9. Distortion: less than -155%
10. ISP: built-in
11. Frame rate: 1920 x 1080 30fps
12. HDR (High dynamic imaging): supported
13. LFM (LED flash suppression): supported
14. Output format: YUV422 8bit
15. Serializer model: MAXIM MAX96717F
16. I2C address: 0x80 (8-bit address)
17. Camera interface: fakra Z type connector
18. Operating voltage: 9 - 12V PoC
19. Operating current: less than 200mA 12V
20. Operating temperature: -40°C - 85°C
21. Protection level: IP67
Packaging list:
- GMSL-2MP-Camera-A main unit x 1
- GMSL Camera wiring (2m double-jumper coaxial cable assembly) x 1
Specification:
| Package Weight |
|
